Stub End HDPE Pipe Fitting Flange Butt Fusion Fitting hdpe fusion fittings
- Model
- Stub End
Item specifics
- Color
- Black
- Pressure level
- 16Mpa
- Material
- PE100
- Connecting method
- Butt fusion welding
- SDR level
- SDR11
- Warranty
- 50 years
- Standard
- ISO 4427、EN 12201、ASTM F714
- Applications
- Water/Gas pipelines
Review
Description
Product Descriptions
Butt Fusion Fitting Stub End
Welping hdpe pipe butt fusion fittings are made of PE 100 high-density polyethylene raw material with a wide range from 63mm to 1200mm and various pressure levels from PN6 to PN16.
· Quality raw material
· High-performance processing equipment
· Strict inspection process
· Considerate service
· Thoughtful technical guidance
Title
What are HDPE pipe butt fusion fittings?
These fittings are connection components used in polyethylene (PE) piping systems. They use an electrical current to heat and fuse the fitting to the pipe, creating a strong and leak-proof joint.
They are often preferred in various applications because of several advantages. For instance, they offer a reliable and permanent connection that can withstand high pressures and harsh environmental conditions. In water supply systems, PE pipe fittings ensure a consistent and secure water flow without the risk of leaks.

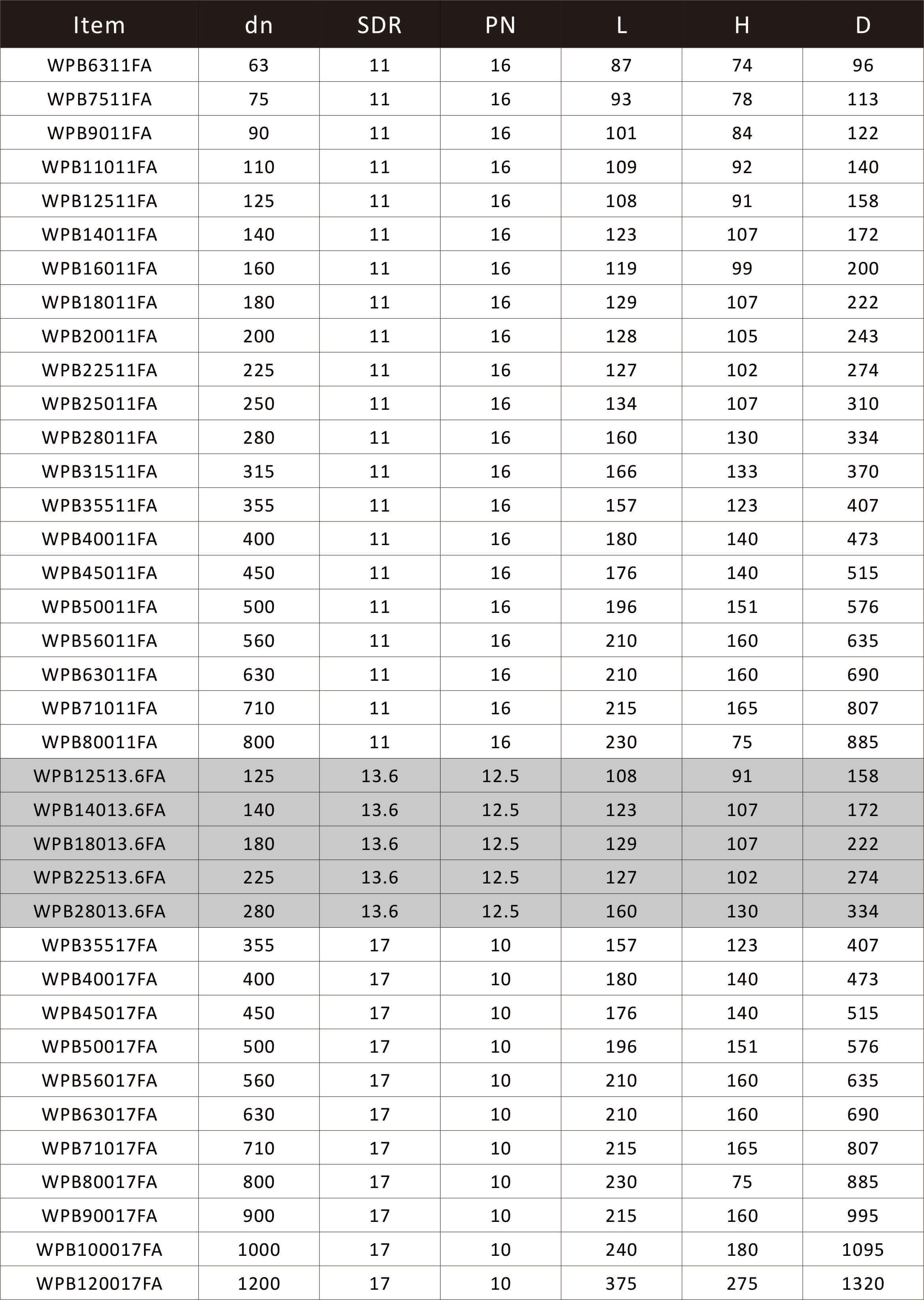

Model Chart
